Miniature Circuit Breaker Acti9 iC60N 3Poles D-Curve 6A 400V IP20 White Schneider Electric

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

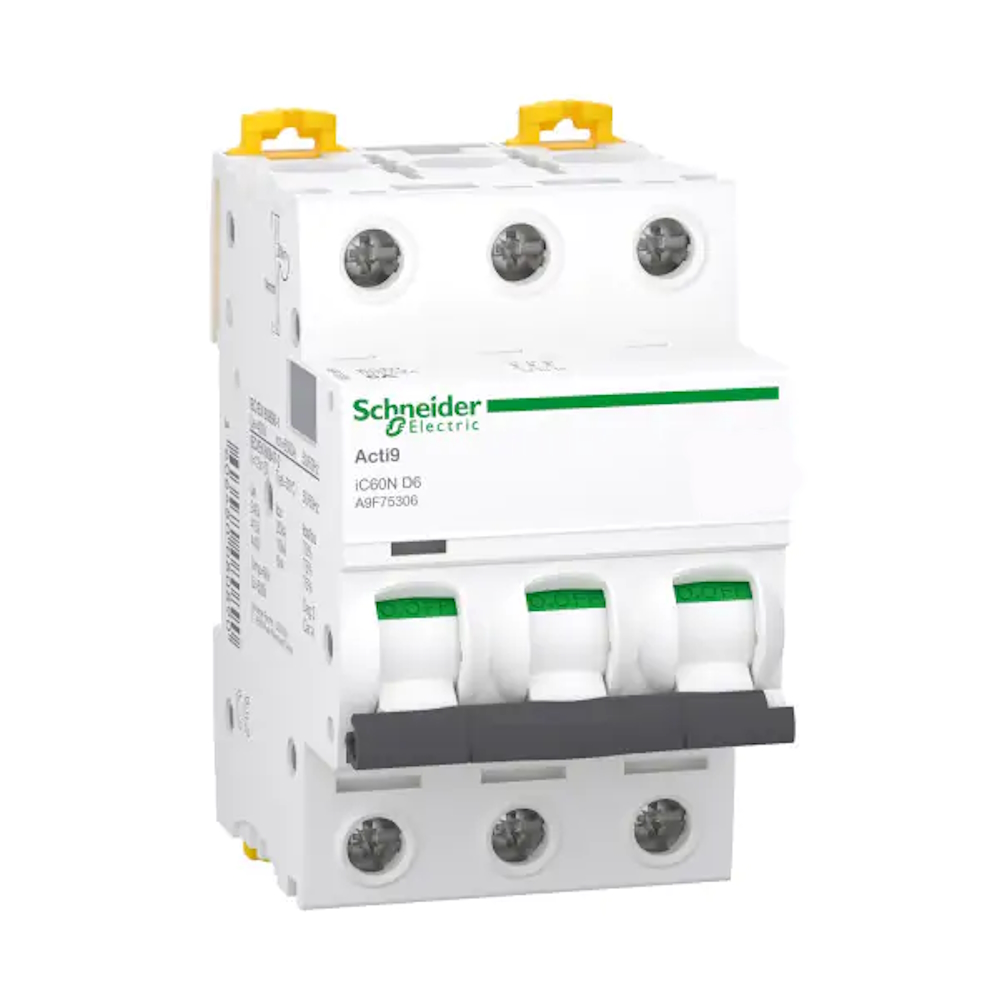

Miniature Circuit Breaker Acti9 iC60N 3Poles D-Curve 6A 400V IP20 White Schneider Electric

Acti9 iC60N is a low voltage miniature circuit breaker 3Poles circuit breaker with 3 protected poles, 6A rated current and D tripping curve.

Description

This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 6A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

Technical Information

  • Voltage type: AC/DC
  • Built-in depth: 44.5mm
  • Rated current: 6A
  • Rated voltage: 400V
  • Frequency: 50-60Hz
  • Release characteristic: D
  • Rated insulation voltage Ui: 500V
  • Current limiting class: 3
  • Over voltage category: 4
  • Pollution degree: 3
  • Width in number of modular spacings: 3
  • Explosion-proof: No
  • Degree of protection (IP): IP20
  • Number of protected poles: 3
  • Concurrently switching neutral conductor: No
  • Connectable conductor cross section solid-core: 1-25mm²
  • Connectable conductor cross section multi-wired: 1-16mm²
  • Ambient temperature during operating: -35-70°C
  • Flush-mounted installation; No
  • Additional equipment possible: Yes
  • Number of poles (total): 3
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400V: 6kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230V: 6kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230V: 20kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400V: 10kA
  • Rated impulse withstand voltage Uimp: 6kV

Specification

  • Colour: White (RAL9003)
  • Measure (WxHxD): 54x85x78.5mm
