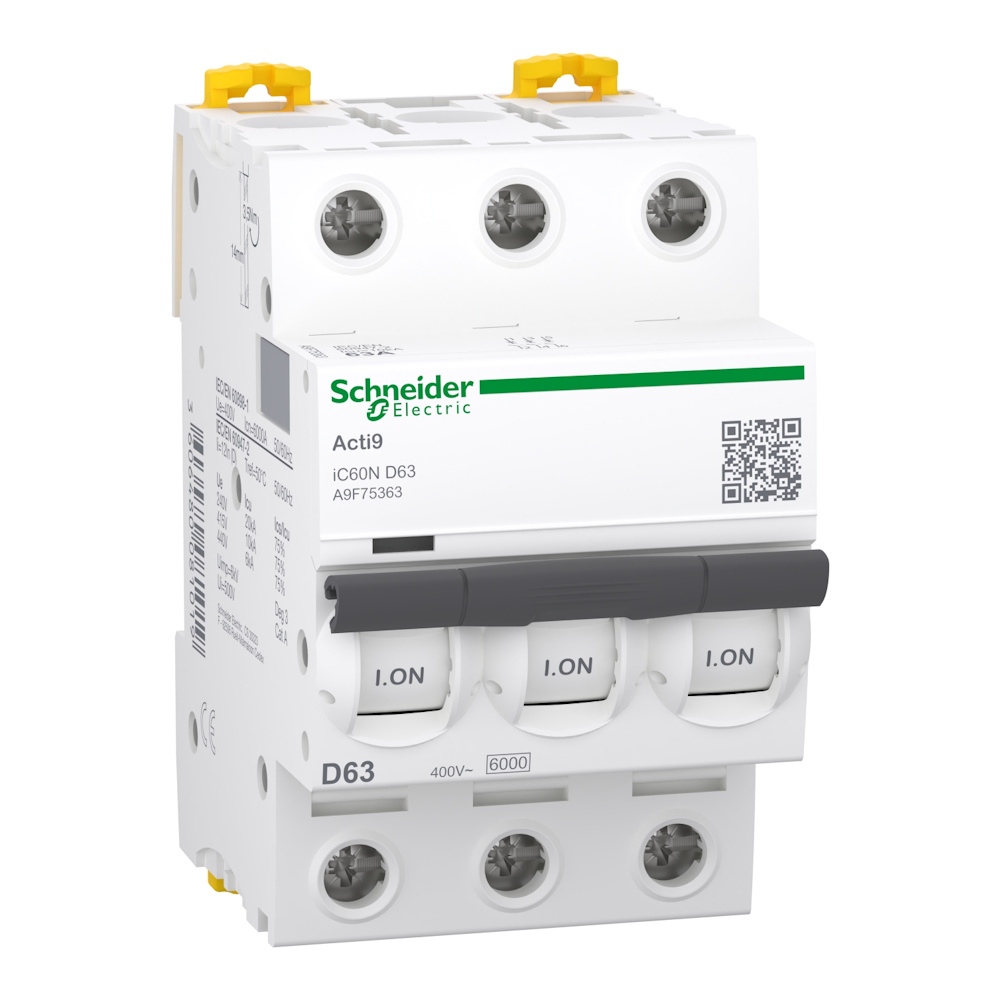

Miniature Circuit Breaker Acti9 iC60N 3Poles D-Curve 63A 400V IP20 Schneider Electric

This Acti9 iC60N is a low voltage miniature circuit breaker (MCB), It is a 3P circuit breaker with 3 protected poles, 63A rated current.

Description

This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 63A rated current and D tripping curve. The rated short circuit breaking capacity is up to 20kA at 220VAC to 240VAC according to EN/IEC 60947-2 standard and 6000A at 400VAC according to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its quick-closing mechanism independent of manual operation improves its service life. It has an electrical endurance of up to 10,000 cycles and a mechanical endurance of up to 20,000 cycles. The Ui rated voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves the downstream circuit protection cost. The product can be clipped onto a DIN rail. Its width is 6 pitches of 9 mm. The pollution degree is 3. The overvoltage category is IV. According to the IEC 60529 standard, the degree of protection is IP20 and IP40 in the enclosure. The operating temperature is -35°C to 70°C. Storage temperature is -40°C to 85°C.

Technical Information

  • Voltage type: AC/DC
  • Installation depth: 44.5 mm
  • Rated current: 63 A
  • Rated voltage: 400 V
  • Frequency: 50-60 Hz
  • Emission characteristics: D
  • Rated insulation voltage Ui: 500 V
  • Current limitation class: 3
  • Overvoltage category: 4
  • Pollution degree: 3
  • Width in number of module distances: 3
  • Explosion-proof: No
  • Ingress protection (IP): IP20
  • Number of protected poles: 3
  • Simultaneous replacement of neutral conductor: No
  • Connectable conductor cross-section solid core: 1-35 mm²
  • Connectable conductor cross-section stranded: 1-25 mm²
  • Ambient temperature during operation: -35-70 °C
  • Flush installation: No
  • Additional equipment possible: Yes
  • Number of poles (total): 3
  • Nominal short-circuit breaking capacity Icn according to EN 60898 at 400 V: 6 kA
  • Nominal short-circuit breaking capacity Icn according to EN 60898 at 230 V: 6 kA
  • Nominal short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 20 kA
  • Nominal short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 10 kA
  • Rated impulse withstand voltage Uimp: 6 kV

Specifications

  • Colour: White (RAL9003)
  • Dimensions (WxHxD): 54x85x78.5 mm
