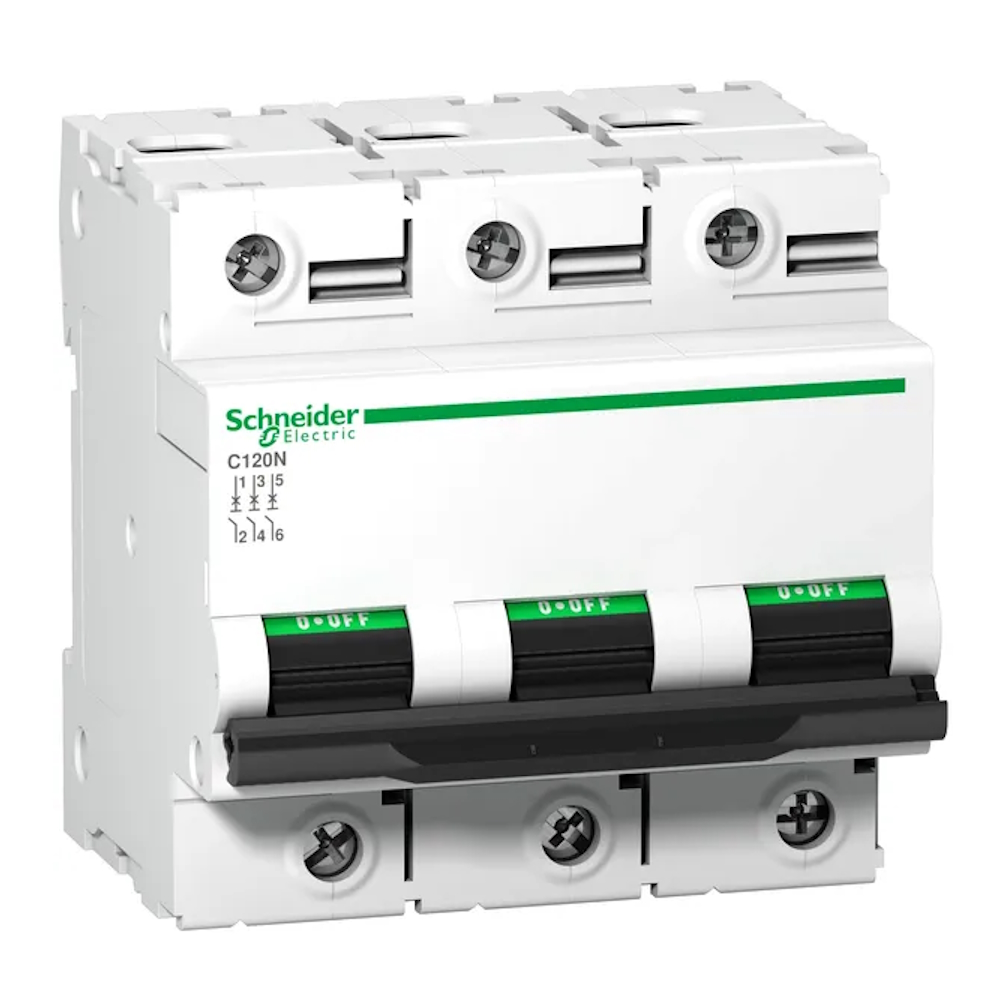

Miniature Circuit Breaker Acti9 C120N 3Poles C-Curve 100A 400V IP20 Schneider Electric

This Acti9 C120N is a low voltage multistandard miniature circuit breaker is a 3poles circuit breaker with 3 protected poles, 100A rated current.

Description

This Acti9 C120N is a low voltage multistandard miniature circuit breaker (MCB). It is a 3poles circuit breaker with 3 protected poles, 100A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The presence of green strip guarantees contact open physically and allows work to be carried out safely on the downstream circuit. It has good overvoltage withstand capacity. The product is designed to offer a high industrial performance level It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is equal or below 375VDC, 220VAC to 240VAC, 230VAC to 400VAC, 380VAC to 415VAC or 440VAC. The Ui rated insulation voltage is 500VAC The frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 9 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.

Technical Information

  • Voltage type: AC
  • Built-in depth: 44mm
  • Rated current: 100A
  • Rated voltage: 400V
  • Frequency: 50-60Hz
  • Release characteristic: C
  • Rated insulation voltage Ui: 500V
  • Current limiting class: 3
  • Over voltage category: 4
  • Pollution degree: 3
  • Width in number of modular spacings: 4.5
  • Explosion-proof: No
  • Degree of protection (IP): IP20
  • Number of protected poles: 3
  • Concurrently switching neutral conductor: No
  • Connectable conductor cross section solid-core: 1.5-50mm²
  • Connectable conductor cross section multi-wired: 1-35mm²
  • Ambient temperature during operating: -25-70°C
  • Flush-mounted installation: No
  • Additional equipment possible: Yes
  • Number of poles (total): 3
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400V: 10kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230V: 10kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230V: 20kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400V: 10kA
  • Rated impulse withstand voltage Uimp: 6kV

Specifications

  • Colour: White (RAL9003)
  • Measure (WxHxD): 81x81x73mm
