Wall Luminaire Asker Up And Downlight Black LED 8.5W 220-240V IP65 Norlys 1720B

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

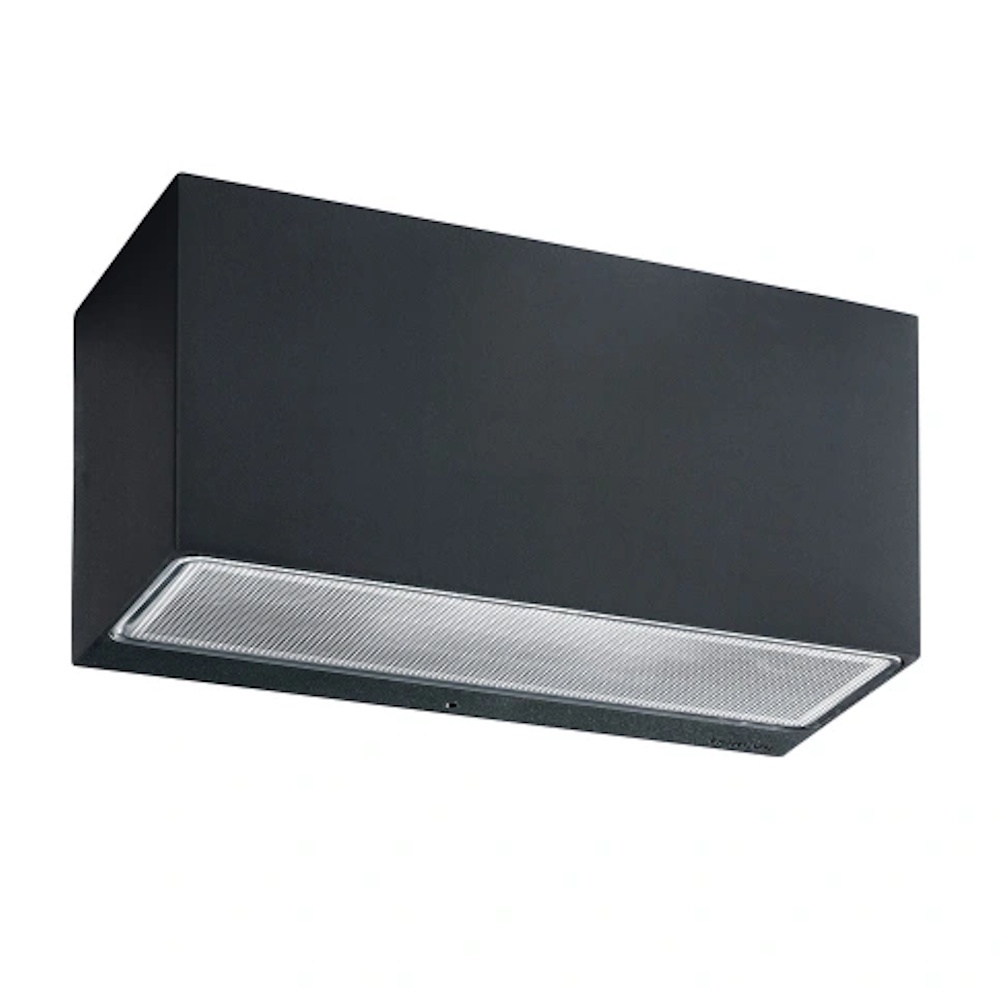

Wall Luminaire Asker Up And Downlight Black LED 8.5W 220-240V IP65 Norlys 1720B

The Asker series is one of Norlys' most popular models, available in a variety of different variants, such as wall, bollard and posts. [Energiklass C]
Energiklass C Produktblad

Description

The Asker series is one of Norlys' most popular models. Available in a variety of different variants, such as wall, bollard and posts. Several colors and sizes are also available. Also different options with light sources. Most models in the Asker series are made of cast aluminum but some wall models are available in galvanized steel.

Technical Information

  • Color temperature: 3000 - 3000 K
  • Nominal luminous flux: 798 lm
  • Protection class (IEC 61140): I
  • Impact resistance (IK): IK08
  • Light distribution: Symmetrical
  • Adapted for VDU work (EN 12464-1): No
  • Number of poles: 3
  • Luminaire with limited surface temperature "D" (EN 60598-2-24): No
  • Bluetooth controlled: No
  • Dimmer with push button: No
  • Dimmer function missing: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming trailing edge (phasecut-off): Yes
  • Dimming depending on driver: No
  • Dimming DALI: No
  • Dimming DALI-2: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming leading edge (phasecut-on): No
  • Dimming GPRS: No
  • Dimming LineSwitch: No
  • Dimming with touch: No
  • Dimming mains voltage modulation: No
  • Dimming potentiometer (integrated): No
  • Installation length: 0 mm
  • Integrated emergency power supply: No
  • Adjustable light distribution: No
  • Adjustment of luminous flux: No
  • Protection class (IP): IP65
  • Compatible with Amazon Alexa: No
  • Compatible with Apple HomeKit: No
  • Compatible with Google Assistant: No
  • Lowest energy efficiency class for replacement lamps: A++
  • Lamp holder/socket: Other
  • Suitable for built-in/recessed installation: No
  • Suitable for lamp power: 8.5 - 8.5 W
  • Suitable for emergency lighting: No
  • Suitable for pendant suspension: No
  • Suitable for ramp installation: No
  • Suitable for ceiling installation: No
  • Suitable for surface mounting: Yes
  • Suitable for wall mounting: Yes
  • Suitable for wall mounting: Yes
  • Suitable number of light sources: 2
  • Conductor cross-section: 2.5 mm²
  • Light colour: White
  • Light distributor/diffuser: None
  • Light source: LED (replaceable)
  • Light beam angle: 40-80° (wide beam)
  • Luminous efficiency: 95 lm/W
  • Programmable dimming: No
  • RF dimming: No
  • Sine wave dimming (Sine Wave Reduction): No
  • Manufacturer specific dimming: No
  • Zigbee dimming: No
  • Dimmable: Yes
  • Driver: LED driver (constant current)
  • Driver included: Yes
  • Power factor: 0.98
  • Energy efficiency class built-in lamps: A++, A+, A (LED)
  • Energy efficiency class light source (EU 2019/2015): C
  • Energy efficiency class supplied replacement lamps: A++
  • Light color adjustable: No
  • Color fastness (McAdam ellipse): SDCM3
  • Color rendering index (CRI/Ra): 80-89
  • Glowing wire test (IEC 60695-2-11): None
  • Highest energy efficiency class for replacement lamps: A++
  • Installation width: 0 mm
  • Installation diameter: 0 mm
  • Installation height/depth: 0 mm
  • Light socket: Indirect
  • Rated voltage: 220 - 240 V
  • Material housing/enclosure/frame: Aluminum
  • Material shade/cover: Plastic (structured)
  • Max. system power: 8.5 W
  • With light source: Yes
  • With light sensor: No
  • With air hole: No
  • With motion sensor: No
  • With IFTTT support: No
  • Nominal service life L70/B50 at 25 °C: 70000 h
  • Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
  • Cover with insulation: No
  • Rotary design: None
  • Protection level (NEMA): Other
  • Voltage type: AC
  • Connection type: Other
  • Type of wiring: Suitable for through-wiring
  • Replaceable driver: Yes
  • Surface protection housing/enclosure/frame: Powder coated
  • Outer diameter: 0 mm

Specification

  • Color housing/enclosure/frame: Black
  • Dimensions (LxWxH): 85x225x110mm
