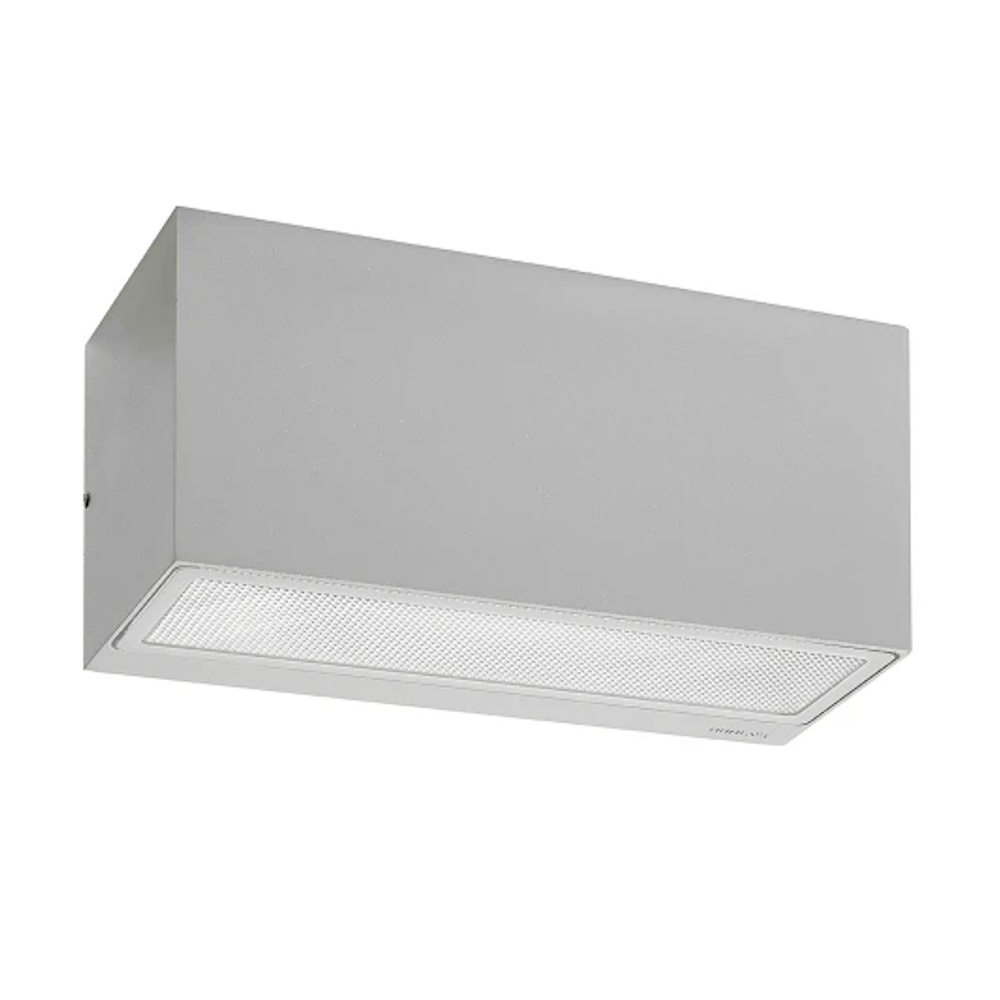

Wall Luminaire Asker Aluminium LED 8.5W 220-240V IP65 Norlys 1720AL

The Asker series is one of Norlys' most popular models, available in a variety of different variants, such as wall, bollard and posts. [Energiklass C]
Energiklass C Produktblad

Description

The Asker series is one of Norlys' most popular models. Available in a variety of different variants, such as wall, bollard and posts. Several colors and sizes are also available. Also different options with light sources. Most models in the Asker series are made of cast aluminum but some wall models are available in galvanized steel.

Technical Information

  • Color temperature: 3000 - 3000 K
  • Nominal luminous flux: 798 lm
  • Protection class (IEC 61140): I
  • Impact resistance (IK): IK08
  • Light distribution: Symmetrical
  • Adapted for VDU work (EN 12464-1): No
  • Number of poles: 2
  • Luminaire with limited surface temperature "D" (EN 60598-2-24): No
  • Dimmer with push button: No
  • Dimmer function missing: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming trailing edge (phasecut-off): Yes
  • Dimming depending on driver: No
  • Dimming DALI: No
  • Dimming DALI-2: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming leading edge (phasecut-on): No
  • Dimming GPRS: No
  • Dimming LineSwitch: No
  • Dimming with touch: No
  • Dimming mains voltage modulation: No
  • Dimming potentiometer (integrated): No
  • Dimming programmable: No
  • Installation diameter: 0 mm
  • Installation height/depth: 0 mm
  • Installation length: 0 mm
  • Integrated emergency power supply: No
  • Protection class (IP): IP65
  • Lowest energy efficiency class for replacement lamps: A++
  • Lamp holder/socket: Other
  • Suitable for built-in/recessed installation: No
  • Suitable for lamp power: 8.5 - 8.5 W
  • Suitable for emergency lighting: No
  • Suitable for pendant suspension: No
  • Suitable for ramp installation: No
  • Suitable for ceiling installation: No
  • Suitable for surface-mounted installation: Yes
  • Suitable for wall installation: Yes
  • Suitable for wall installation: Yes
  • Suitable number of light sources: 2
  • Conductor cross-section: 2.5 mm²
  • Light color: White
  • Light distributor/diffuser: None
  • Light source: LED (replaceable)
  • Beam angle: 40-80° (wide beam)
  • Luminous efficiency: 95 lm/W
  • Light outlet: Indirect
  • Rated voltage: 220 - 240 V
  • Dimming RF: No
  • Dimming sine wave (Sine Wave Reduction): No
  • Dimming manufacturer-specific: No
  • Dimming Zigbee: No
  • Dimmable: Yes
  • Driver: LED driver (constant current)
  • Driver included: Yes
  • Power factor: 0.98
  • Energy efficiency class built-in lamps: A++, A+, A (LED)
  • Energy efficiency class light source (EU 2019/2015): C
  • Energy efficiency class included replacement lamps: A++
  • Colour fastness (McAdam ellipse): SDCM3
  • Colour rendering index (CRI/Ra): 80-89
  • Glowing wire test (IEC 60695-2-11): None
  • Highest energy efficiency class for replacement lamps: A++
  • Installation width: 0 mm
  • Cover material: Plastic (structured)
  • Max. system power: 8.5 W
  • With light source: Yes
  • With light sensor: No
  • With air hole: No
  • With motion sensor: No
  • Nominal service life L70/B50 at 25 °C: 70000 h
  • Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
  • Cover with insulation: No
  • Grid design: None
  • Protection level (NEMA): Other
  • Voltage type: AC
  • Connection type: Other
  • Type of wiring: Suitable for through-wiring
  • Replaceable driver: Yes
  • Surface protection housing/enclosure/frame: Powder coated

Specification

  • Color housing/enclosure/frame: Aluminum
  • Dimensions (LxWxH): 85x225x110mm
