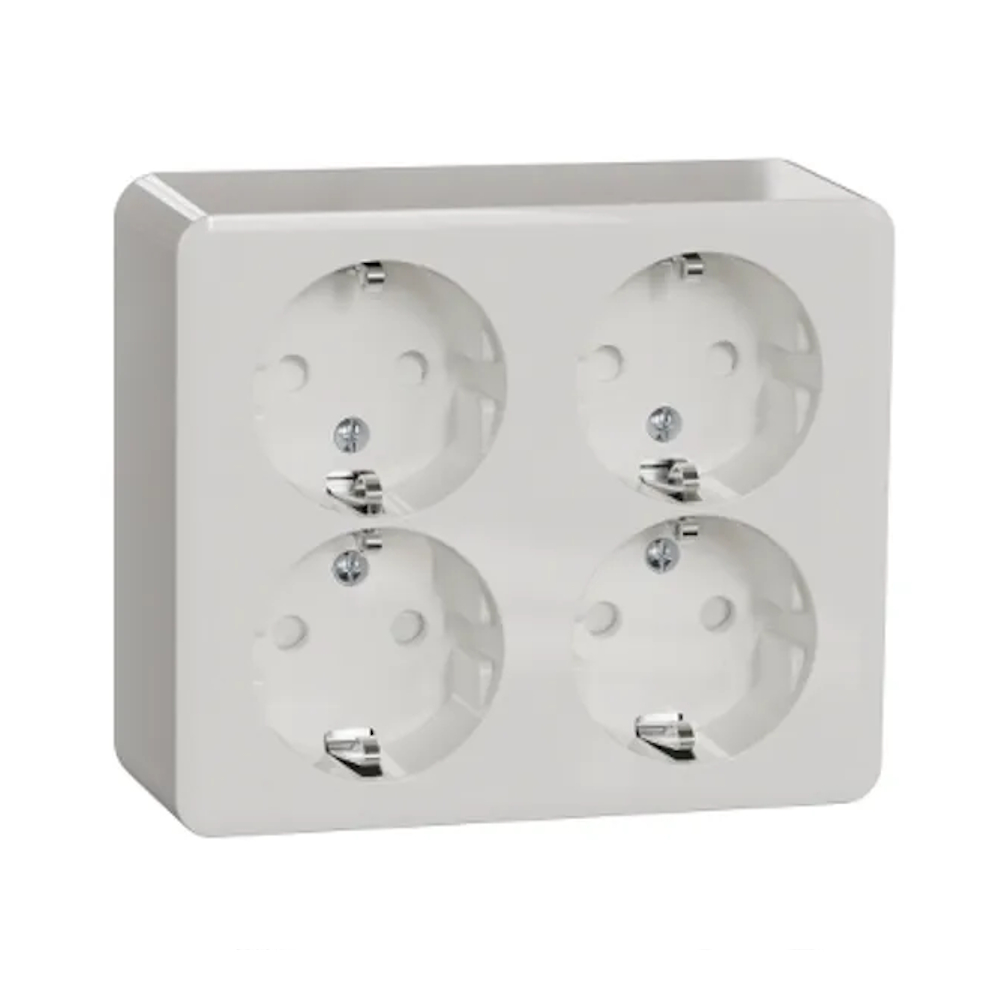

Wall Socket Exxact 4-Way Screwless Earth 16A 250V IP21 White Schneider Electric

Description

4-way wall socket for surface-mounted installation with integrated base plate. 16AX, 250V, earthed, with 2 neutral jumper terminals, possibility of separate well ignition, touch-protected. Quick connection. Cable entries from the rear through cutouts in the base plate or from all sides using cutouts in the cover. The product is IP20 (even with the cover removed). IP21 when the cable is inserted from below.

Technical Information

• Nominal current: 16 A
• Nominal voltage: 250 V
• Halogen free: Yes
• Number of units: 4
• Lockable: No
• With hinged lid: No
• Connection type: Push-in clamp
• Surface protection: Untreated
• With signal lamp: No
• Number of phases: 1
• With enhanced contact protection: Yes
• Frequency: 50-60 Hz
• With on/off switch: No
• Protective contact: Yes
• Label space/information surface: No
• Eject-mechanism: No
• Rotated central insert: No
• Over voltage protection: No
• Fault current protection: No
• Special power supply: No special power supply
• Insulated mounting: Yes
• Material: Plastic
• Type of fastening: Mounting with screw
• Imprint/indication: None
• Transparent: No
• With miniature fuse: No
• With loop through function: Yes
• Suitable for degree of protection (IP): IP21
• With function lighting: No
• With orientation lighting: No
• With built-in USB power supply: No
• Number of active pins (round): 2
• Protective earth pin round: No
• Metallic colour: No
• Anti-bacterial treatment: No

Specifications

• Mounting method: Surface mounted (plaster)
• Colour: White
• RAL-number (similar) :9003
• Model: Protective contact (type F)
• Material quality: Thermoplastic
• Surface finishing: Glossy
• Device width: 116 mm
• Device height: 98 mm
• Device depth: 42 mm
