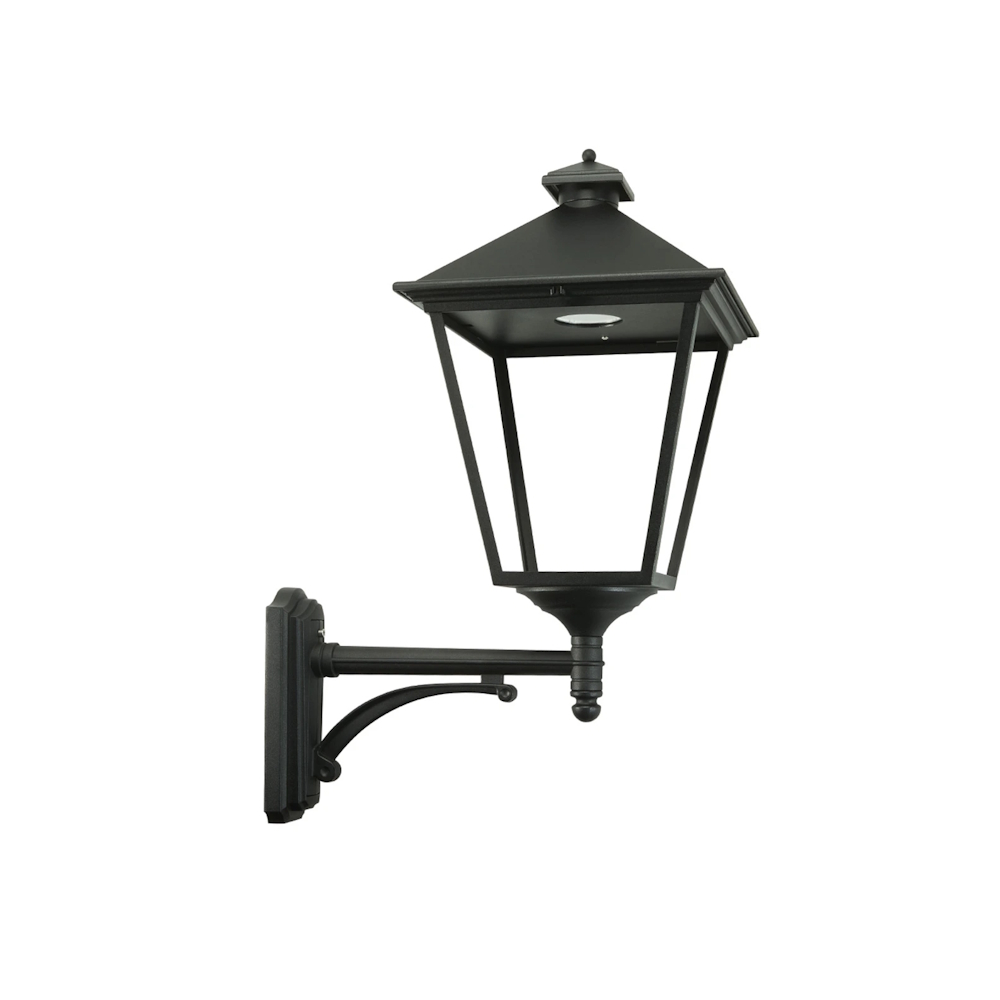

Wall Light London Big LED 9.5W 220-240V IP54 Black Norlys 4117B

Description

A popular series in classic design, Also available with E27 socket, Corner bracket available as an accessory. A popular series in classic design. Also available with E27 socket. Corner bracket available as an accessory. The series includes both post and ceiling luminaires.

Technical Information

• Color temperature: 4000 - 4000 K
• Nominal luminous flux: 0 lm
• Protection class (IEC 61140): II
• Light distribution: Symmetrical
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Width: 300 mm
• Dimmer with push button: No
• Dimmer function missing: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phase cut-off): No
• Dimming depending on driver: No
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phase cut-on): No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Driver: LED driver (constant current)
• Driver included: Yes
• Power factor: 0.9
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Energy efficiency class light source (EU 2019/2015): E
• Colour fastness (McAdam ellipse): SDCM3
• Colour rendering index (CRI/Ra): 80-89
• Glowing wire test (IEC 60695-2-11): None
• Integrated emergency power supply: No
• Protection class (IP): IP54
• Suitable for built-in/recessed mounting: No
• Suitable for lamp power: 9.5 - 9.5 W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp mounting: No
• Suitable for ceiling mounting: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor cross-section: 2.5 mm²
• Light distributor/diffuser: None
• Light source: LED (replaceable)
• Light beam angle: 40-80° (wide beam)
• Light socket: Direct
• Rated voltage: 220 - 240 V
• Max. system power: 9.5 W
• With light source: Yes
• With light sensor: No
• With air hole: No
• With motion sensor: No
• Nominal service life L70/B50 at 25 °C: 50000 h
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Cover with insulation: No
• Grid design: None
• Voltage type: AC
• Connection type: Plug (male)
• Type of wiring: Suitable for through-wiring
• Replaceable driver: Yes
• Surface protection housing/enclosure/frame: Powder coated

Specifications

• Light color: White
• Color housing/enclosure/frame: Black
• Material Dome/Cover: Without dome/cover
• Material housing/enclosure/frame: Aluminum
• Food Contact Material: No
• REACH: No
• Height/depth: 460 mm
• Length 670 mm
