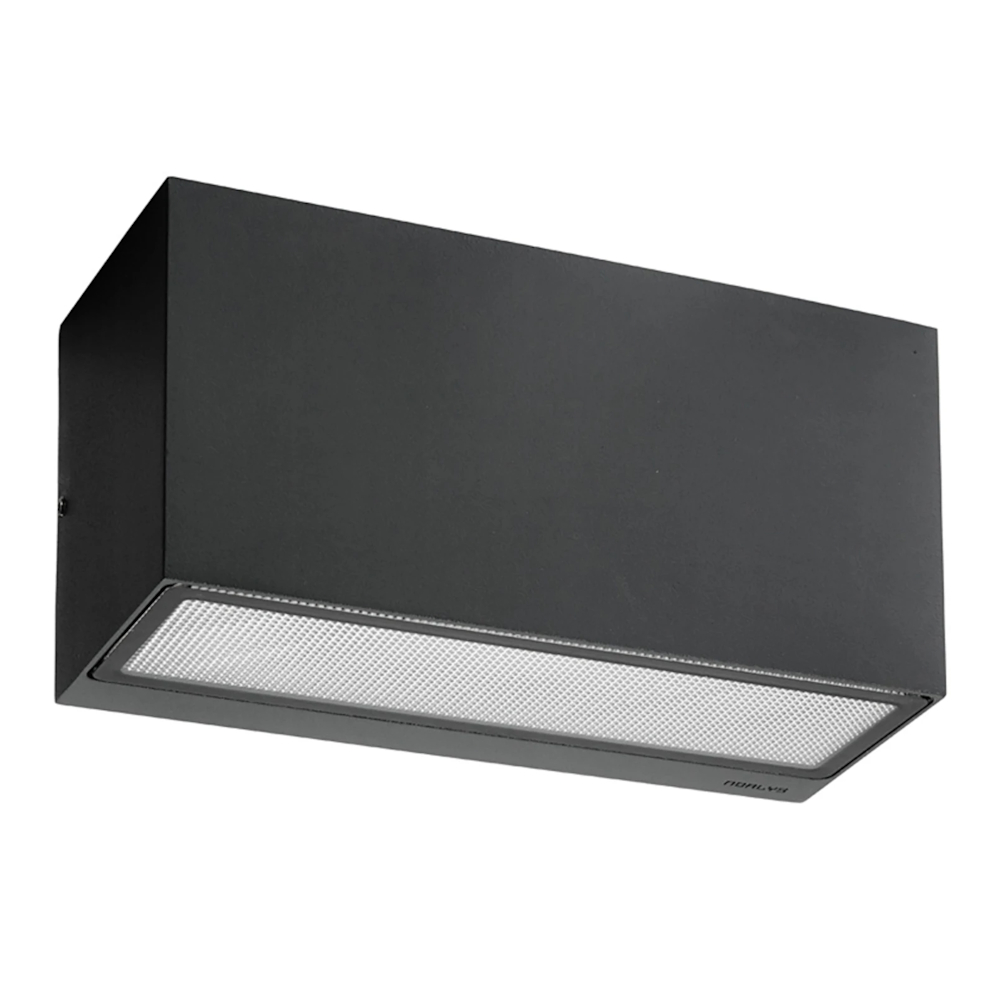

Wall Light Asker Graf Dali 5.5W 220-240V 3000K Anthracite Norlys 1727GR
New version of Asker wall model now with a stronger glare-free down light, Made of cast aluminum, Replaceable LED modules. [Energiklass C]

Watch this product and we will notify you once it is back in stock.
Wall Light Asker Graf Dali 5.5W 220-240V 3000K Anthracite Norlys 1727GR
New version of Asker wall model now with a stronger glare-free down light, Made of cast aluminum, Replaceable LED modules. [Energiklass C]

Description
New version of Asker wall model now with a stronger glare-free down light. Made of cast aluminum. Replaceable LED modules. Available in two different colors. Polycarbonate with optical structure. Dali2 prepared
Technical Information
- Color temperature: 3000 - 3000 K
- Nominal luminous flux: 0 lm
- Protection class (IEC 61140): I
- Impact resistance (IK): IK08
- Light distribution: Symmetrical
- Adapted for VDU work (EN 12464-1): No
- Number of poles: 3
- Luminaire with limited surface temperature "D" (EN 60598-2-24): No
- Dimmer with push button: No
- Dimmer function missing: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming trailing edge (phase cut-off): No
- Dimming DALI: Yes
- Dimming DALI-2: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming leading edge (phase cut-on): No
- Dimming LineSwitch: No
- Dimming with touch: No
- Dimming mains voltage modulation: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming RF: No
- Dimming sine wave (Sine Wave Reduction): No
- Dimming manufacturer-specific: No
- Dimming Zigbee: No
- Driver: LED driver (constant current)
- Driver included: Yes
- Power factor: 0.9
- Energy efficiency class light source (EU 2019/2015): C
- Color fastness (McAdam ellipse): SDCM3
- Color rendering index (CRI/Ra) 80-89
- Glowing wire test (IEC 60695-2-11): None
- Integrated emergency power supply: No
- Protection class (IP): IP65
- Lamp holder/socket: Other
- Suitable for built-in/recessed mounting: No
- Suitable for lamp power: 5.5 - 5.5 W
- Suitable for emergency lighting: No
- Suitable for pendant suspension: No
- Suitable for ramp mounting: No
- Suitable for ceiling mounting: No
- Suitable for surface mounting: Yes
- Suitable for wall mounting: Yes
- Suitable number of light sources: 1
- Conductor cross-section: 2.5 mm²
- Light source: LED (replaceable)
- Light distribution angle: 40-80° (wide beam)
- Light outlet: Indirect
- Rated voltage: 220 - 240 V
- Max. system power: 5.5 W
- With light source: Yes
- With light sensor: No
- With air hole: No
- With motion sensor: No
- Nominal service life L70/B50 at 25 °C: 70000 h
- Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
- Cover with insulation: No
- Grid design: None
- Voltage type: AC
- Connection type: Push-in terminal (fast terminal)
- Type of wiring: Suitable for through-wiring
- Replaceable driver: Yes
Specifications
- Light color: White
- Color housing/enclosure/frame: Anthracite
- Material housing/enclosure/frame: Aluminum
- Material dome/cover: Plastic (structured)
- Surface protection housing/enclosure/frame: Powder coated
- Food Contact Material: No
- REACH: No
- Width: 225 mm
- Height/depth: 85 mm
- Length: 100 mm
