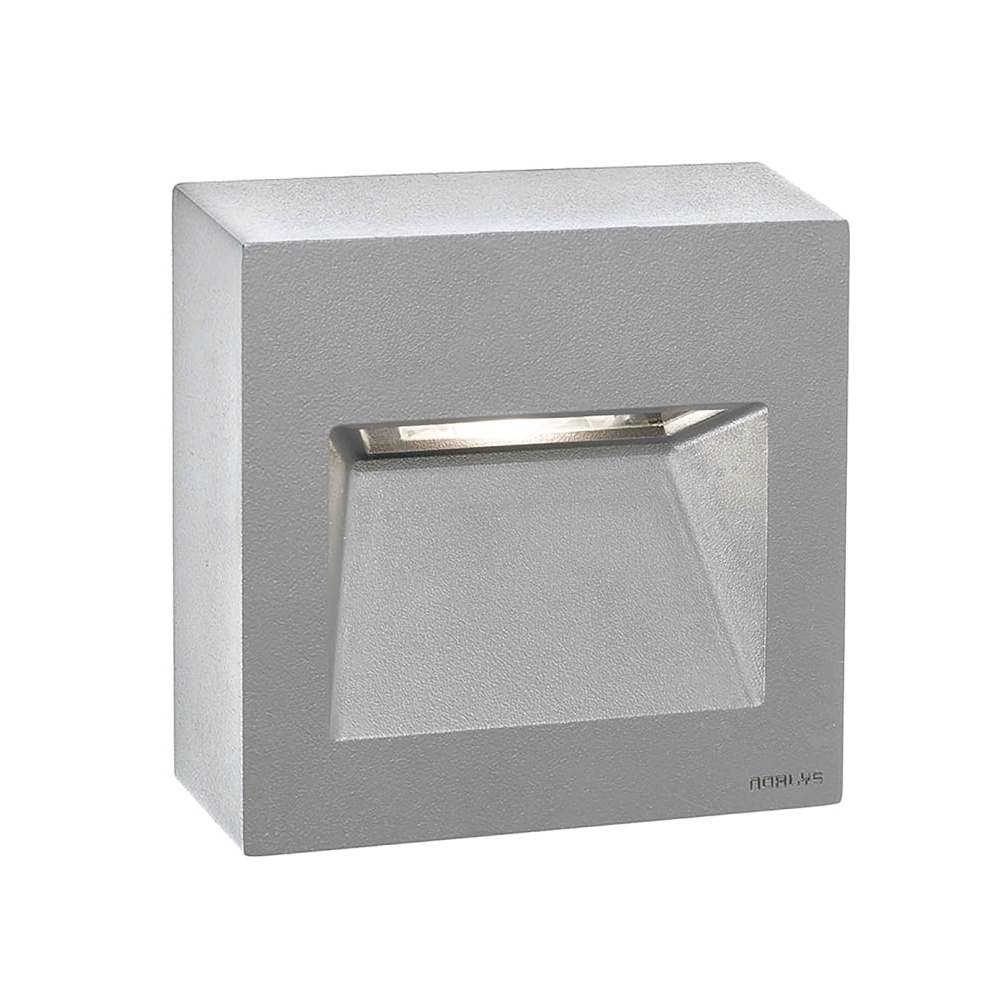

Wall Arm Namsos Aluminum 4W 220-240V IP65 Norlys 1341AL

Description

Wall lamp Namsos 1341 is a stylish, dimmable facade lighting with a symmetrical light pattern. It has a luminous flux of 123 Lumen and a burn time of 50,000 h.

Technical Information

• Color of housing/enclosure/frame: Aluminum
• Color temperature: 3000 - 3000 K
• Nominal luminous flux: 123 lm
• Protection class (IEC 61140): I
• Impact resistance (IK): IK09
• Light distribution: Symmetrical
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Width: 112 mm
• Dimmer with push button: No
• Dimmer function missing: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phase cut-off): Yes
• Dimming depending on driver: No
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phase cut-on): No
• GPRS dimming: No
• LineSwitch dimming: No
• Touch dimming: No
• Mains voltage modulation dimming: No
• Potentiometer dimming (integrated): No
• Programmable dimming: No
• RF dimming: No
• Sine wave dimming (Sine Wave Reduction): No
• Manufacturer specific dimming: No
• Zigbee dimming: No
• Dimmable: Yes
• Driver: Not required
• Driver included: No
• Power factor: 0.98
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Energy efficiency class light source (EU 2019/2015): E
• Energy efficiency class supplied replacement lamps: A+
• Light color adjustable: No
• Color fastness (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Glowing wire test (IEC 60695-2-11): None
• Highest energy efficiency class for replacement lamps: A+
• Height/Depth: 112 mm
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Adjustable light output: No
• Protection class (IP): IP65
• Lowest energy efficiency class for replacement lamps: A+
• Suitable for built-in/recessed installation: No
• Suitable for lamp power: 4 - 4 W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp installation: No
• Suitable for ceiling installation: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Length: 112 mm
• LED nominal current at constant current: 0 - 0 mA
• Conductor cross-section: 2.5 mm²
• Light color: White
• Light distributor/diffuser: None
• Light source: LED (replaceable)
• Luminous efficiency: 30.8 lm/W
• Light output: Indirect
• Rated voltage: 220 - 240 V
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Glass (matt/satin)
• Max. system power: 4 W
• With light source: Yes
• With light sensor: No
• With air hole: No
• With motion sensor: No
• Nominal service life L70/B50 at 25 °C: 50000 h
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Cover with insulation: No
• Roof design: None
• Voltage type: AC
• Type of wiring: Suitable for through-conduction
• Replaceable driver: Yes
• Surface protection housing/enclosure/frame Powder coated
• Food Contact Material: No
• REACH: No
