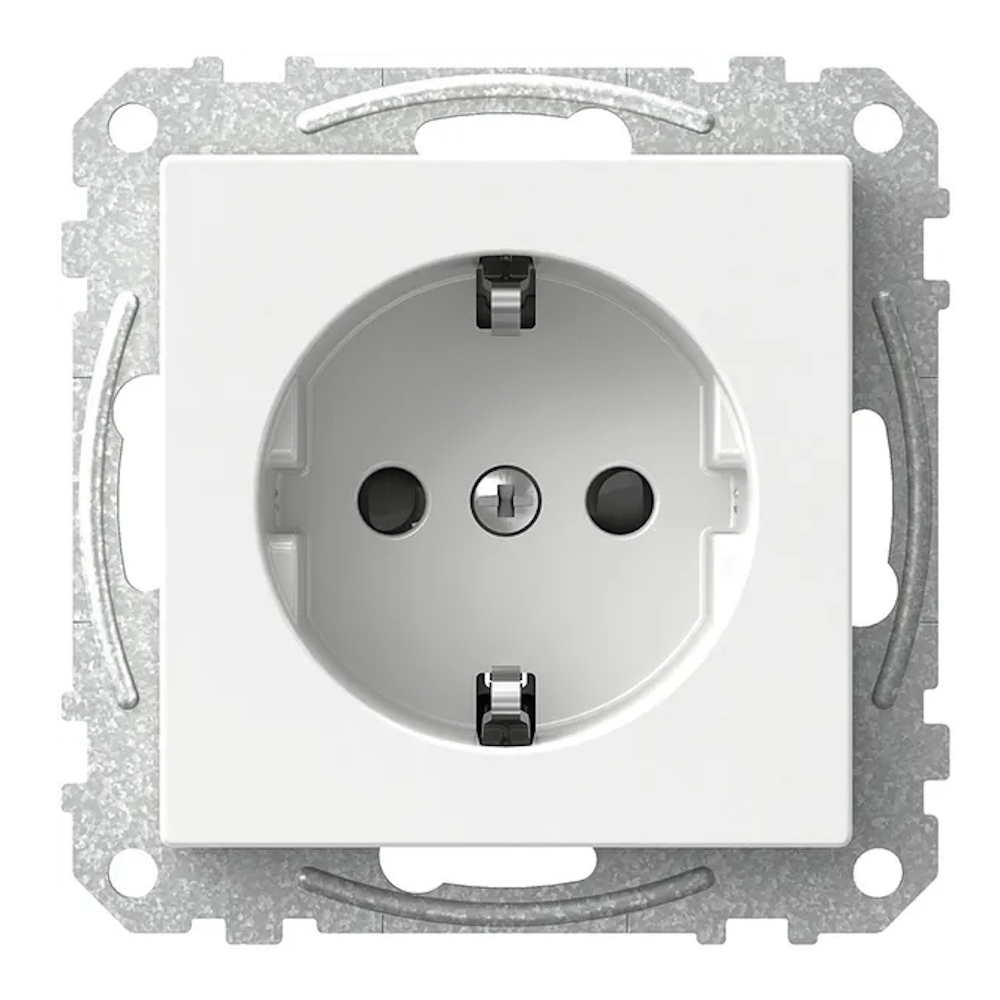

Socket-Outlet Exxact 16A 250V IP20 White Schneider Electric

Description

Schneider Electric Exxact socket-outlet is a mechanism in color white with 1 outlet. This device is to be completed with Exxact frame. The outlet pole configuration of this socket-outlet is 2P + E with shutters. And it's rated current is 16A. Flush mounting is supported so that its box can be recessed into the surface. Its connection terminals are screwless terminals. The socket-outlet is 71 mm in width, 71 mm in height and 28 mm in embedding depth, whose projecting depth is 11.8 mm. The IP rating of this device is IP20. Being made of ASA + PC material, this socket-outlet is very reliable and resistant. Standards of DIN VDE 0620-1, IEC 60884-1, SFS 5610:2004, SS 4280834 are well satisfied. It obtained Fimko, Nemko, Semko certificate as well. Being environmentally friendly, this socket-outlet is a green premium product too. And it is mercury free and heavy metal free. This socket-outlet is SVHC (substances of very high concern) free too. Exxact is a wiring range developed from Nordic installation habits. As integrated solutions for energy and comfort controls, there are more than 250 functions and inserts to choose from.

Technical Information

• Nominal current: 16 A
• Nominal voltage: 250 V
• Halogen free: Yes
• Number of units: 1
• Lockable: No
• With hinged lid: No
• Connection type: Push-in clamp
• Surface protection: Untreated
• With signal lamp: No
• Number of phases: 1
• With enhanced contact protection: Yes
• Frequency: 50-60 Hz
• With on/off switch: No
• Protective contact: Yes
• Label space/information surface: No
• Eject-mechanism: No
• Rotated central insert: No
• Over voltage protection: No
• Fault current protection: No
• Special power supply: No special power supply
• Insulated mounting: No
• Material: Plastic
• Rated fault current: 0 mA
• Type of fastening: Mounting with screw
• Imprint/indication: None
• Transparent: No
• Surface finishing: Glossy
• With miniature fuse: No
• With loop through function: Yes
• Suitable for degree of protection (IP): IP20
• Number of socket outlets switchable: 0
• With function lighting: No
• With orientation lighting: No
• With built-in USB power supply: No
• Number of modules (module system): 0
• Number of active pins (round): 2
• Number of active pins (flat): 0
• Protective earth pin round: No

Specifications

• Mounting method: Flush mounted (plaster)
• Colour: White
• Model: Protective contact (type F)
• Metallic colour: No
• Anti-bacterial treatment: No
• Material quality: Thermoplastic
• RAL-number (similar): 9003
• Device width: 71 mm
• Device height: 71 mm
• Device depth: 51 mm
• Min. depth of built-in installation box: 28 mm
• Projecting depth: 11.8 mm
