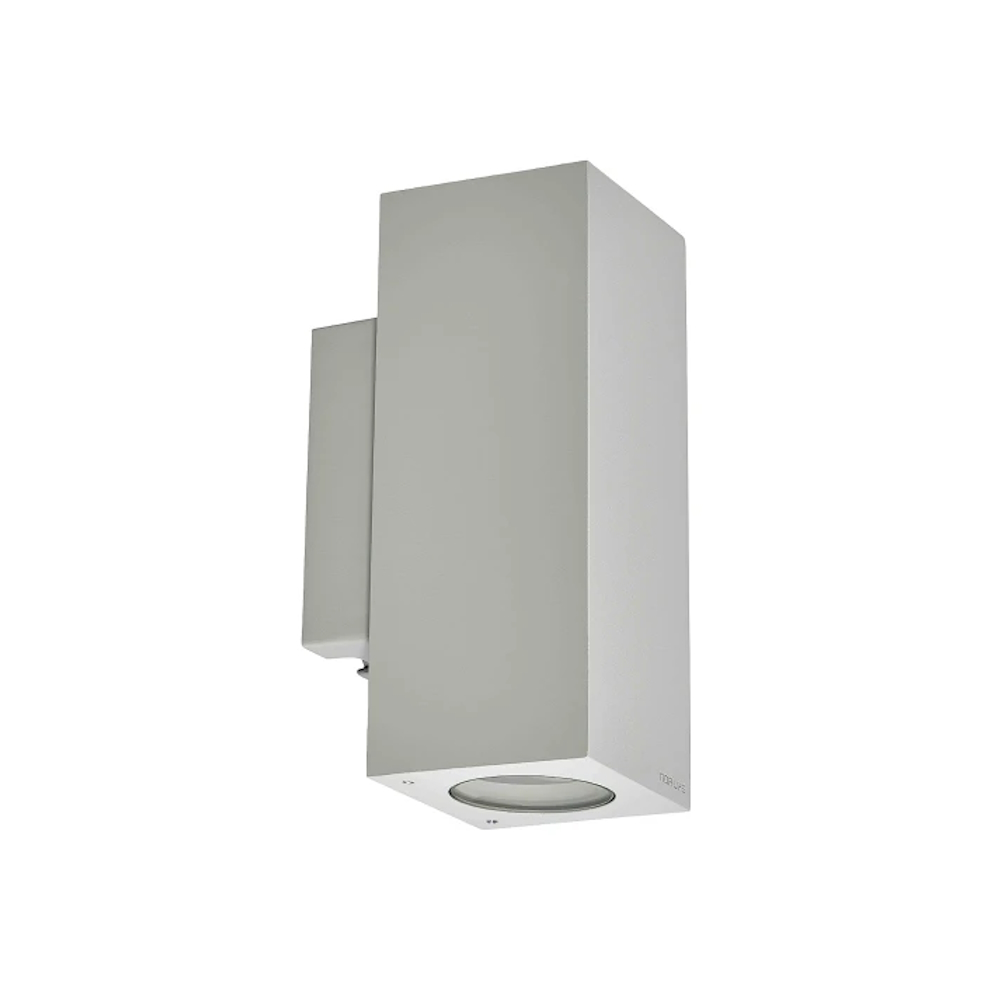

Sandvik Wall Arm 16W 220-240V Aluminum Norlys 1732AL

Description

This versatile and practical wall lamp from Norlys has two light beams that go up and down.

Technical Information

• Colour temperature: 3000 - 3000 K
• Nominal luminous flux: 1126 lm
• Protection class (IEC 61140): I
• Light distribution: Symmetrical
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Dimmer with push button: No
• Dimmer function missing: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phase cut-off): Yes
• Dimming depending on driver: No
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phase cut-on): No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer specific: No
• Dimming Zigbee: No
• Dimmable: Yes
• Driver: Not required
• Driver included: No
• Power factor: 0.98
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Energy efficiency class light source (EU 2019/2015): E
• Energy efficiency class supplied replacement lamps: A++
• Colour fastness (McAdam ellipse): SDCM3
• Colour rendering index (CRI/Ra): 80-89
• Glowing wire test (IEC 60695-2-11): None
• Highest energy efficiency class for replacement lamps: A++
• Integrated emergency power supply: No
• Protection class (IP); IP65
• Minimum energy efficiency class for replacement lamps: A++
• Suitable for built-in/recessed installation: No
• Suitable for lamp power: 8 - 8 W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp installation: No
• Suitable for ceiling installation: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 2
• Conductor cross-section: 2.5 mm²
• Light color: White
• Light distributor/diffuser: Reflector
• Light source: LED (replaceable)
• Light beam angle: 20-40° (medium beam)
• Luminous efficiency: 70.4 lm/W
• Light outlet: Indirect
• Rated voltage: 220-240V
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Glass (transparent)
• Max. system power: 16W
• With light source: Yes
• With light sensor: No
• With air hole: No
• With motion sensor: No
• Nominal service life L70/B50 at 25 °C: 50000 h
• Nominal ambient temperature according to IEC 62722-2-1: 35 - 35 °C
• Cover with insulation: No
• Rotary design: None
• Voltage type: AC
• Connection type: Other
• Type of wiring Suitable for through: wire
• Replaceable driver: Yes
• Food Contact Material: No
• REACH: No

Specification

• Dimensions (LxWxH): 110x80x210mm
• Colour of housing/enclosure/frame: Aluminium

• Surface protection housing/enclosure/frame: Powder coated
