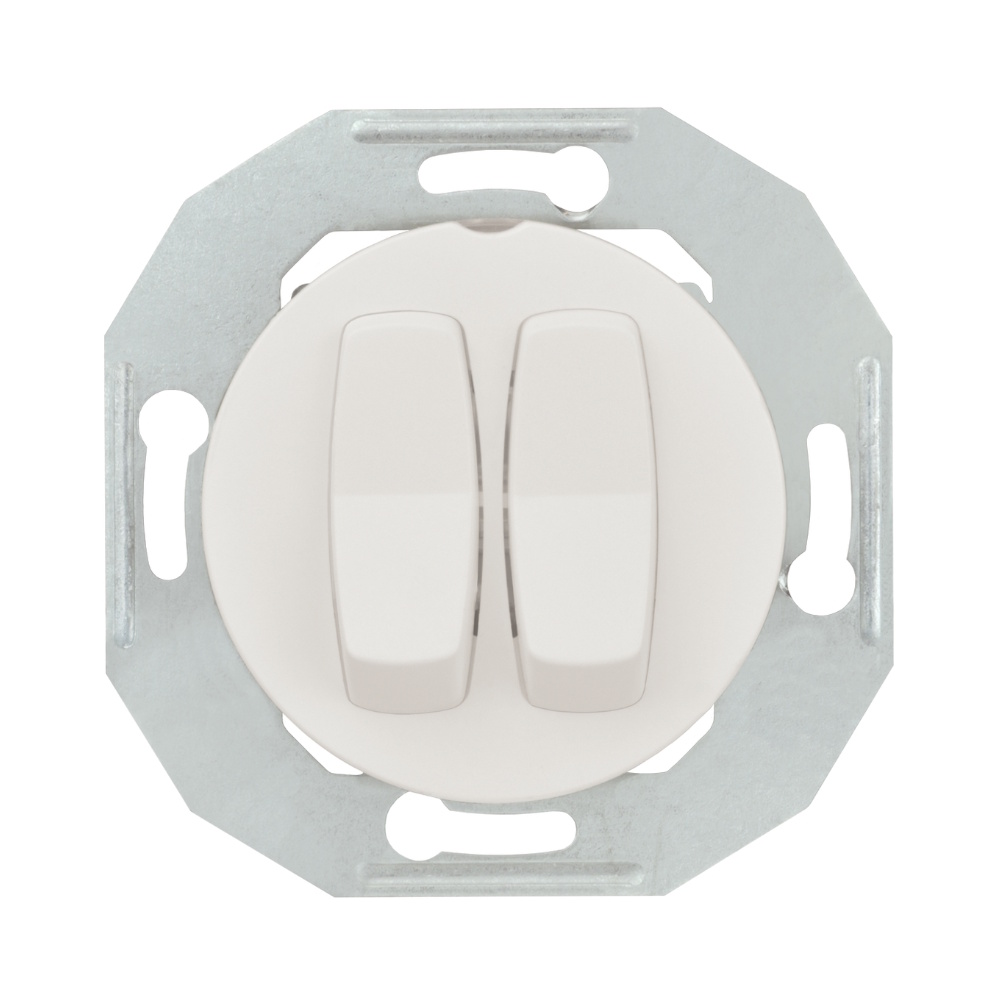

Rocker Switch Renova 2-Circuits 16A 250V IP20 White Schneider Electric

Description

Schneider Electric Renova switch WDE011016 is a insert + rocker in color white. This is a 1-pole 2-way switch. Its fixing mode is by claws, by screws. And its rated current is 16A. With an embedding depth of 15 mm, whose projecting depth is 19 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. Besides, the IP rating of this device is IP20. Its connection terminals are screwless terminals. Being made of PC/ABS material, this switch is quite reliable and resistant. What's more, it well satisfied the standard of EN 60669-1. It obtained CE, FIMKO, NEMKO, SEMKO certificate as well. Being environmentally friendly, this switch is a green premium product too. And it is mercury free as well as heavy metal free, taking care of the environment and your health all the time. This switch is SVHC (substances of very high concern) free too. From classic installation electronics to multimedia outlets, Renova combines a sleek older design with unique accessories that all meet today's demands in terms of safety and comfort. Smart options such as wallpaper protection or simple click-in technology for recessed or surface mounting further simplify installation.

Technical Information

• Nominal voltage: 250 V
• Mounting method: Flush mounted (plaster)
• Assembly arrangement: Basic element with central cover plate
• Method of operation: Rocker/button
• With mounting plate: Yes
• Connection type: Push-in clamp
• Illumination: No
• Surface protection: Untreated
• Built-in depth: 15 mm
• Rated current: 16 A
• Feedback-signal contact: No
• Type of fastening: Mounting with claw and screw
• Wiring system: Off switch 2x1-pole
• Number of rockers: 2
• Switching current for fluorescent lamps: 16 AX
• Push button switch: No
• Washing machine switch: No
• Suitable for degree of protection (IP): IP20
• Label space/information surface: No
• Number of modules (module system): 0
• IFTTT support available: No
• Minimum depth of built-in installation box: 22 mm
• Compatible with Apple HomeKit: No
• Compatible with Google Assistant: No
• Compatible with Amazon Alexa: No
• Heating switch: No
• Anti-bacterial treatment: No

Specifications

• Color: White
• RAL-number (similar): 9010
• Halogen free: Yes
• Material quality: Thermoplastic
• Material: Plastic
• Surface finishing: Matt
• Device width: 71 mm
• Device height: 71 mm
• Device depth: 19 mm
