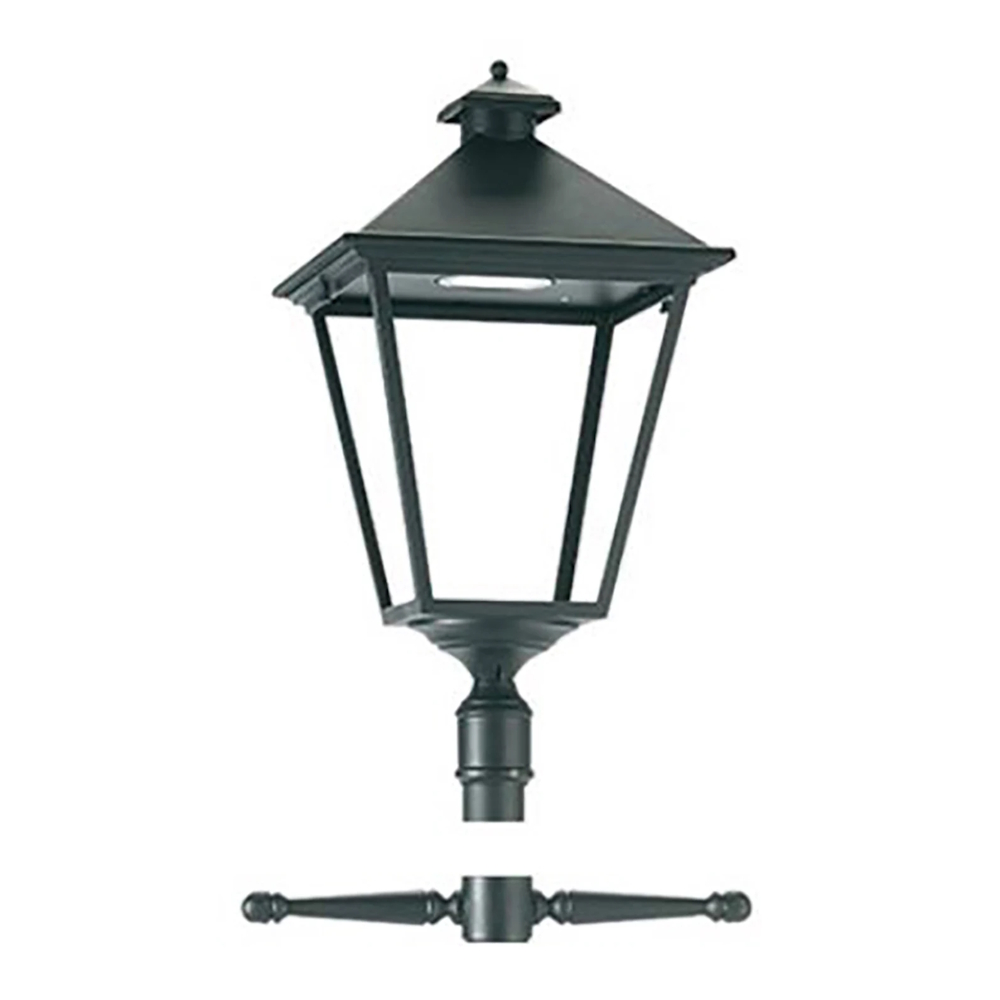

Post Light Lantern House London Big LED 17.5W 220-240V Black Norlys 4112B

Description

A popular series in classic design. Also available with E27 socket. The series includes both wall and ceiling fixtures. Alternative poles available as accessories

Technical Information

• Nominal luminous flux: 1392 lm
• Colour temperature: 3000 - 3000 K
• Mounting method: Top
• Suitable for pole diameter from/to: 50 - 50 mm
• Dimmable No
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• CLO: Yes
• Dimmer with push button: No
• No dimmer function: Yes
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phase cut-off): No
• Dimming DALI: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phase cut-on): No
• Dimming GPRS; No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Driver: LED driver (constant current)
• Driver included: Yes
• Power factor: 0.9
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Energy efficiency class light source (EU 2019/2015): E
• Energy efficiency class supplied replacement lamps: A+
• Colour fastness (McAdam ellipse): SDCM3
• Colour rendering index (CRI/Ra): 80-89
• Remote control: None
• Highest energy efficiency class for replacement lamps: A+
• Adjustable optics: No
• Protection class (IP): IP54
• Compatible with Google Assistant: No
• Minimum energy efficiency class for replacement bulbs: A+
• Suitable for lamp power: 17.5 - 17.5 W
• Suitable number of light sources: 1
• Cable length: 2.3 m
• LED nominal current at constant current: 0 - 0 mA
• Conductor cross-section: 2.5 mm²
• Light distributor/diffuser: None
• Light source: LED (replaceable)
• Luminous efficiency: 79.5 lm/W
• Rated voltage: 220 - 240 V
• Max. system power: 17.5 W
• With connection cable: Yes
• With light source: Yes
• With dimming program control: No
• With radio control: No
• Nominal service life L70/B50 at 25 °C: 50000 h
• Nominal service life L90/B10 at 25 °C: 0 h
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Protection class (IEC 61140): II
• Voltage type: AC
• Type of wiring: Termination
• Replaceable driver: Yes

Specifications

• Light color: White
• Color housing/enclosure/frame: Black
• Material housing/enclosure/frame: Aluminum
• Material Dome/Cover: Without dome/cover
• Surface treatment: Powder coated
• Food Contact Material: No
• REACH: No
• Width: 320 mm
• Height/depth: 320 mm
• Length: 560 mm
