M-Smart Frame 1-Gang IP20 Polar White Schneider Electric

Description

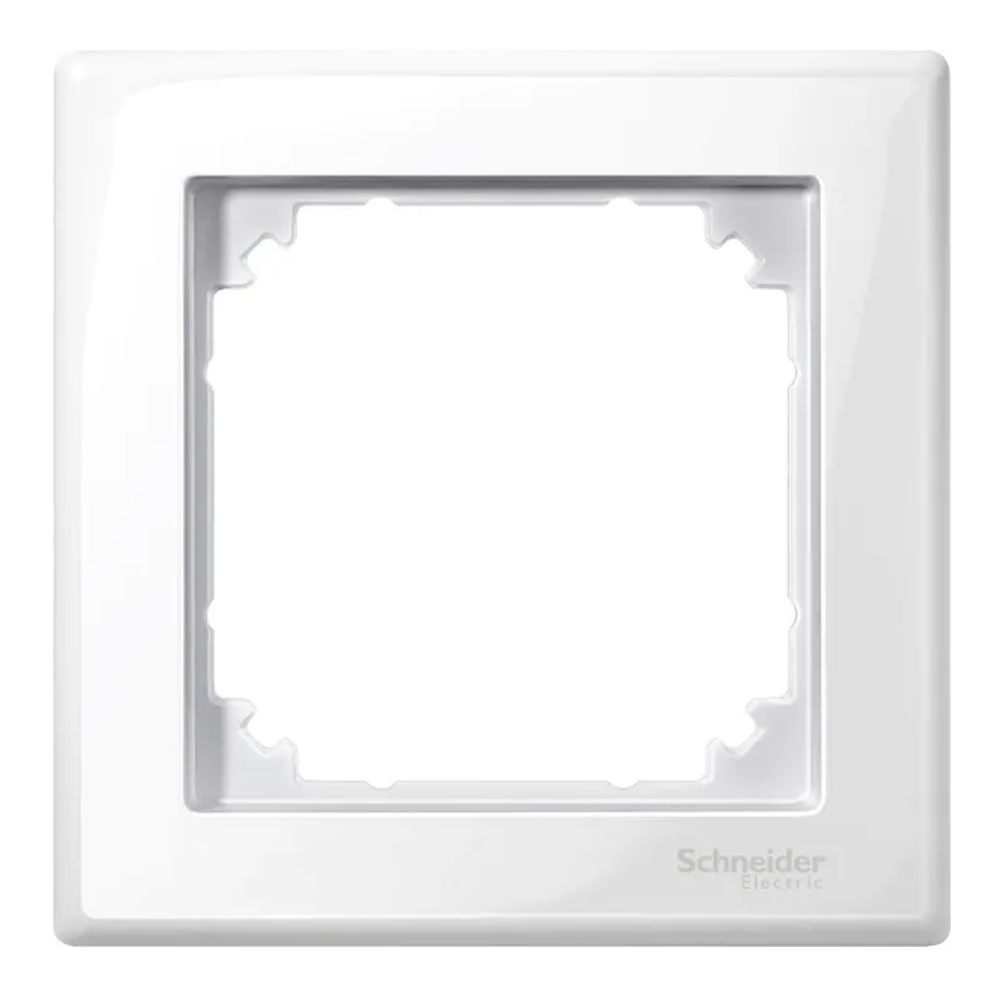

Schneider Electric Merten System M cover frame is in color polar white with 1 gang. This cover frame belongs to M-Smart aesthetic group. This cover frame supports horizontal and vertical mounting. Being reliable and resistant enough, it reaches IP20. Being made of polycarbonate material, this cover frame is very reliable and resistant. Besides, this is a green premium product, taking care of your family as much as possible. And it is mercury free. And it is halogen free. In addition, this cover frame is specially designed for residential, small commercial, facilitating the daily needs easily and safely. System M range is based on 4 different surfaces and materials. With 9 different design variations and over 280 functions, the system can meet any customer demand.

Technical Information

• Number of units: 1
• With hinged lid: No
• Built-in height: 0 mm
• Built-in width: 0 mm
• Label space/information surface: No
• Type of fastening: Clamping/screw mounting
• Mounting direction: Horizontal and vertical
• RAL-number (similar): 9010
• Degree of protection (IP): IP20
• Suitable for floor box: No
• Transparent: No
• Suitable for wall duct: No
• Suitable for built-in installation: No
• Number of units horizontal: 1
• Number of units vertical: 1
• Diameter bore hole (opening): 60 mm
• Number of modules horizontal (module system): 0
• Number of modules vertical (module system): 0
• With mounting grid: No
• Number of switch inserts: 1

Specification

• Colour: Polar White
• Halogen free: Yes
• Surface protection: Untreated
• Material quality: Thermoplastic
• Material: Plastic
• Surface finishing: Glossy
• Width: 80.5 mm
• Height: 80.5 mm
• Depth: 10.1 mm
