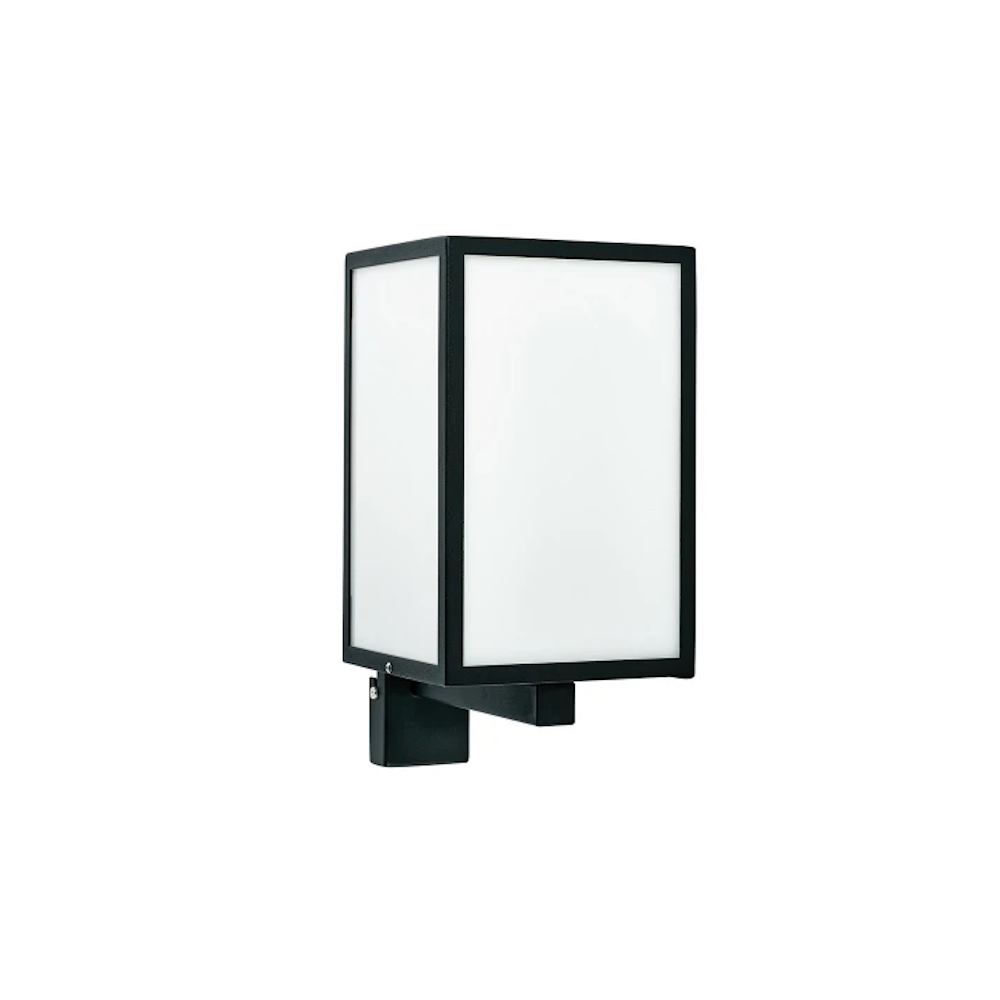

Lofoten Wall Arm Opal 220-240V IP44 Black Norlys 1963B

Description

Timeless retro luminaire in black lacquered steel. Opal white polycarbonate. Belongs to a product family with both posts, ceilings and more wall models. Corner bracket available as an accessory. Also available with tempered clear glass. Lofoten Wall Arm. Black E27 IP44 Class 2 Without light source Can be turned upside down Opal polycarbonate. Corner bracket as an accessory.

Technical Information

• Colour of housing/enclosure/frame: Black
• Colour temperature: 2200 - 4000 K
• Nominal luminous flux: 0 lm
• Protection class (IEC 61140): II
• Light distribution: Symmetrical
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Bluetooth controlled: No
• Dimmer with push button: No
• Dimmer function missing: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phase cut-off): No
• Dimming depending on driver: No
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phase cut-on): No
• Dimming GPRS: No
• LineSwitch dimming: No
• Touch dimming: No
• Mains voltage modulation dimming: No
• Potentiometer dimming (integrated): No
• Programmable dimming: No
• RF dimming: No
• Sine wave dimming (Sine Wave Reduction): No
• Manufacturer-specific dimming: No
• Zigbee dimming: No
• Light color adjustable: No
• Color rendering index (CRI/Ra): 80-89
• Filament test (IEC 60695-2-11): None
• Highest energy efficiency class for replacement lamps: A++
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Luminous flux adjustment: No
• Protection class (IP): IP44
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Google Assistant: No
• Lowest energy efficiency class for replacement lamps: D
• Lamp holder/socket: E27
• Suitable for built-in/recessed mounting: No
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp mounting: No
• Suitable for ceiling mounting: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor cross-section: 2.5 mm²
• Light color: White
• Light distributor/diffuser: None
• Light source: Incandescent lamp
• Light beam angle: >80° (extremely wide beam)
• Light socket: Direct
• Rated voltage: 220-240V
• With light source: No
• With light sensor: No
• With air hole: No
• With motion sensor: No
• With IFTTT support: No
• Cover with insulation: No
• Grid design: None
• Voltage type: AC
• Type of wiring Suitable for through-wiring
• Replaceable driver: No
• Food Contact Material: No
• REACH: No

Specification

• Material housing/enclosure/frame: Steel
• Material Dome/Cover: Plastic (structured)
• Surface protection housing/enclosure/frame: Powder coated
• Dimensions (LxWxH): 284x190x390mm
