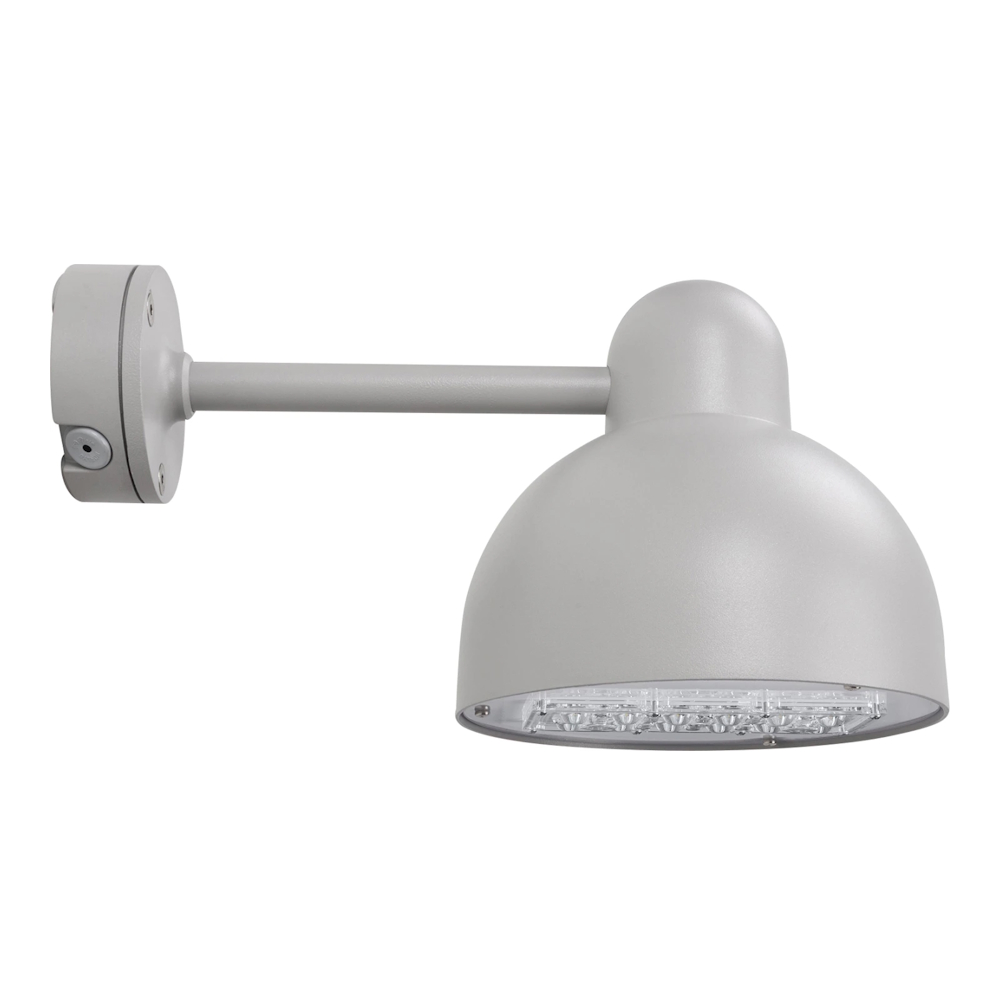

Koster Wall Light LED 14.4W 220-240V 3000K Aluminum Norlys 1810AL

Description

Wall model in the popular Koster series. Made of cast aluminum with polycarbonate in optical structure. Available in two different colors. Available with both E27 or fixed LED module. Symmetrical or asymmetrical light pattern. Corner bracket available as an accessory. In this series there are also complete posts and loose lamp housings.

Technical Information

• Color temperature: 3000 - 3000 K
• Nominal luminous flux: 1975 lm
• Protection class (IEC 61140): I
• Impact resistance (IK): IK10
• Light distribution: Asymmetrical
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Dimmer with push button: No
• Dimmer function missing: Yes
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phase cut-off): No
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phase cut-on): No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Programmable dimming: No
• RF dimming: No
• Sine wave dimming (Sine Wave Reduction): No
• Manufacturer specific dimming: No
• Zigbee dimming: No
• Driver: LED driver (constant current)
• Driver included: Yes
• Power factor: 0.95
• Energy efficiency class light source (EU 2019/2015): D
• Color fastness (McAdam ellipse): SDCM4
• Color rendering index (CRI/Ra): 70-79
• Glowing wire test (IEC 60695-2-11); None
• Integrated emergency power supply: No
• Protection class (IP): IP54
• Suitable for built-in/recessed installation: No
• Suitable for lamp power: 14.4 - 14.4 W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp installation: No
• Suitable for ceiling installation: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor cross-section: 2.5 mm²
• Light distributor/diffuser: Diffuser lens/optics/panel
• Light source: LED (replaceable)
• Luminous efficiency: 137.2 lm/W
• Light socket: Direct
• Rated voltage: 220 - 240 V
• Max. system power: 14.4 W
• With light source: Yes
• With light sensor: No
• With air hole: No
• With motion sensor: No
• Nominal service life L70/B50 at 25 °C: 120000 h
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Cover with insulation: No
• Grid design: None
• Voltage type: AC
• Connection type: Screw terminal
• Type of wiring: Suitable for through-wiring
• Replaceable driver: Yes

Specifications

• Light color: White
• Color housing/enclosure/frame: Aluminum
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Glass (transparent)
• Surface protection housing/enclosure/frame: Powder coated
• Food Contact Material: No
• REACH: No
• Height/depth: 400 mm
• Length: 240 mm
• Width: 245mm
