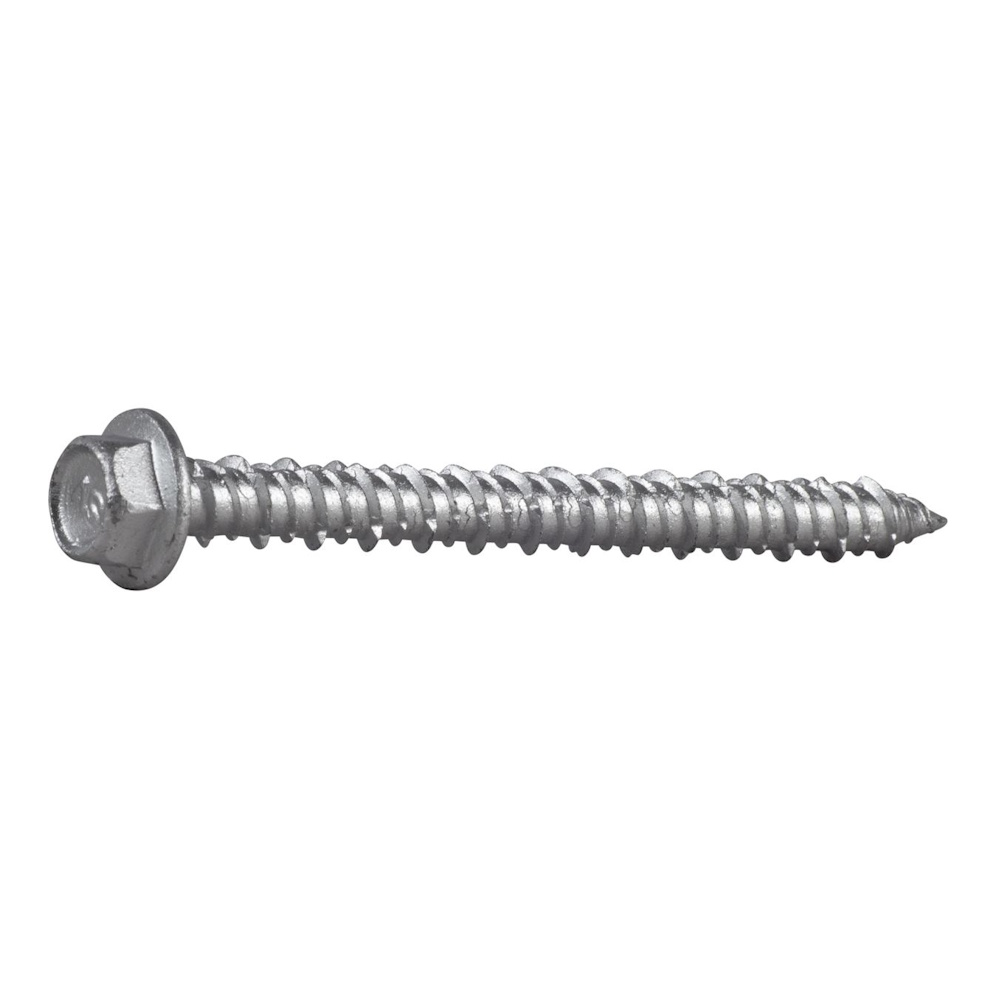

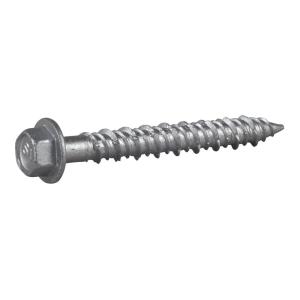

Concrete Screw ECS-HF Hexagon Head With Flange Corrseal C4 7.5(6)x80mm 100pcs Essve
Throughly hardened screw that is driven directly into a drilled hole, without a plug, It has a so-called hi-low thread.
Watch this product and we will notify you once it is back in stock.
Concrete Screw ECS-HF Hexagon Head With Flange Corrseal C4 7.5(6)x80mm 100pcs Essve
Throughly hardened screw that is driven directly into a drilled hole, without a plug, It has a so-called hi-low thread.
Description
Throughly hardened screw that is driven directly into a drilled hole, without a plug. It has a so-called hi-low thread that provides good load values and facilitates installation. The CorrSeal surface treatment provides at least 15 years of durability in corrosivity class C4 according to Swedish type approval. According to ISO 9223, corrosivity class C4 is characterized by outdoor environments with significant amounts of air pollution or moderate amounts of salt, e.g. industry and coastal areas.
Specifications
- Surface treatment: CorrSeal
- Corrosivity class: C4
- Environmental coding: Outdoor
- Diameter: 7.5mm
- Length: 80mm
- Head diameter: 14.5mm
- Thread length: 30mm
- D.thickness (tfix): 45/30 mm
- Bore diameter: 6 mm
- Set depth (hnom): 35/50 mm
- Bore depth: 45/60 mm
- Sleeve: 10 mm
- Quantity/Pack: 100pcs
