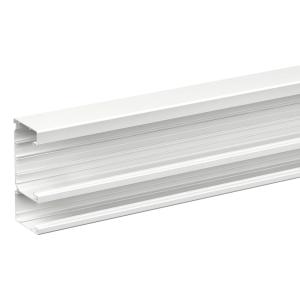

Channel Base INKA123 2,5m IP20 White Schneider Electric

Description

Made of aluminum with 80 mm front opening. Can be divided into 4 compartments with cable shelves. Equipped with grounding groove. Can also be cut to size in lengths up to 5.0 m. U123-4 for flush mounting.

Technical Information

• Halogen-free: Yes
• Number of plug-in partitions: 3
• Number of cover caps: 0
• Anti-bacterial: No
• Useable area: 6301 mm²
• Operating temperature range: -5 - 60 °C
• Protection class (IP): IP20
• Rear wall construction (inside): Continuous other profile
• Cover included in the product: No
• Material quality: Other
• With cable fixing clip: No
• With duct connection: No
• Cover mounting method: Inside lying
• Perforation in the bottom: Yes
• RAL number: 9016
• Rectangular design: Yes
• Protective film: Yes
• Impact resistance (IK): IK07
• Symmetrical: Yes
• Surface treatment: Anodized/anodized
• Food Contact Material: No
• REACH: No

Specifications

• Colour: White
• Material: Aluminum
• Width 123 mm
• Depth: 72 mm
• Length: 2500 mm
• Width cover 1: 80 mm
• Width cover 2: 0 mm
• Width cover 3: 0 mm
