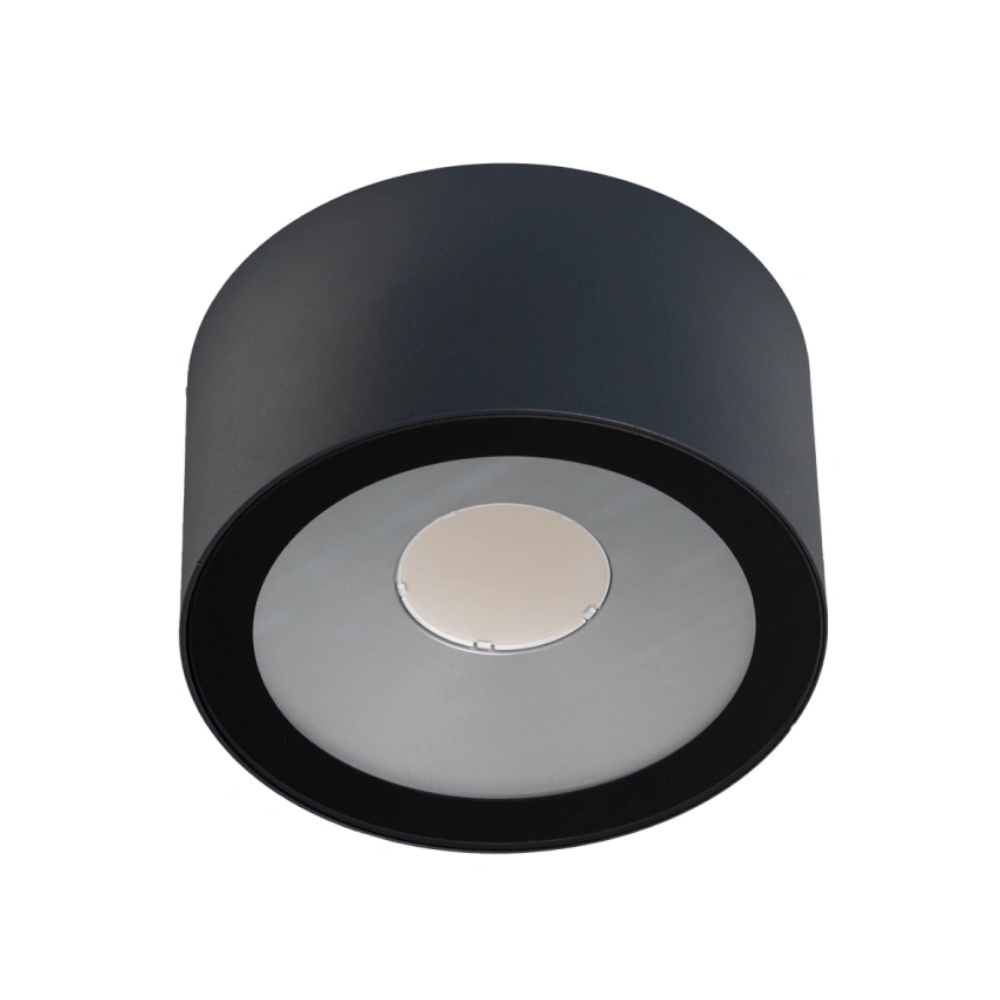

Ceiling Luminaire Sol Grafit 19.1W 220-240V IP65 Norlys 4051GR

Description

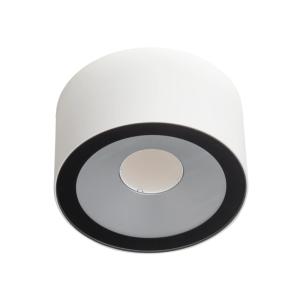

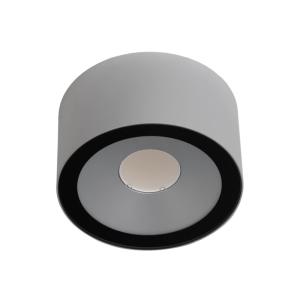

Ceiling luminaire in a modern design. Made of cast aluminum. Replaceable LED light sources. Available in three different colors and with clear glass. Spacer plate available for surface-mounted cable.

Technical Information

• Color temperature: 3000 - 3000 K
• Nominal luminous flux: 2101 lm
• Protection class (IEC 61140): I
• Impact resistance (IK): IK10
• Light distribution: Symmetrical
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Bluetooth controlled: No
• Dimmer with push button: No
• Dimmer function missing: No
• Dimming 0-10 V: Yes
• Dimming 1-10 V: Yes
• Dimming trailing edge (phase cut-off): Yes
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phase cut-on): No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Driver: Not required
• Driver included: Yes
• Power factor: 0.9
• Energy efficiency class light source (EU 2019/2015): E
• Color of light adjustable: No
• Color constancy (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Flicker value Pst LM: 1
• Glowing wire test (IEC 60695-2-11): None
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Adjustment of luminous flux: No
• Protection class (IP): IP65
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Suitable for built-in/recessed mounting: No
• Suitable for lamp power: 19.1 - 19.1 W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp mounting: No
• Suitable for ceiling mounting: Yes
• Suitable for surface mounting: Yes
• Suitable for wall mounting: No
• Suitable number of light sources: 1
• Conductor cross-section: 2.5 mm²
• Light distributor/diffuser: None
• Light source: LED (replaceable)
• Light beam angle: 20-40° (medium beam)
• Luminous efficiency: 110 lm/W
• Light outlet: Indirect
• Rated voltage: 220 - 240 V
• Max. system power: 19.1 W
• With light source: Yes
• With light sensor: No
• With air hole: No
• With motion sensor: No
• With IFTTT support: No
• Nominal service life L70/B50 at 25 °C: 100000 h
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Cover with insulation: No
• Rotary design: None
• Voltage type: AC
• Strobe effect value SVM: 0.4
• Type of wiring: Suitable for through-wiring
• Replaceable driver: Yes

Specifications

• Color of housing/housing/frame: Anthracite
• Material of housing/housing/frame: Aluminum
• Material of dome/cover: Plastic (structured)
• Surface protection of housing/housing/frame: Powder coated
• Light color: White
• Food Contact Material: No
• REACH: No
• Width: 200 mm
• Height/Depth: 110 mm
• Length: 200 mm
