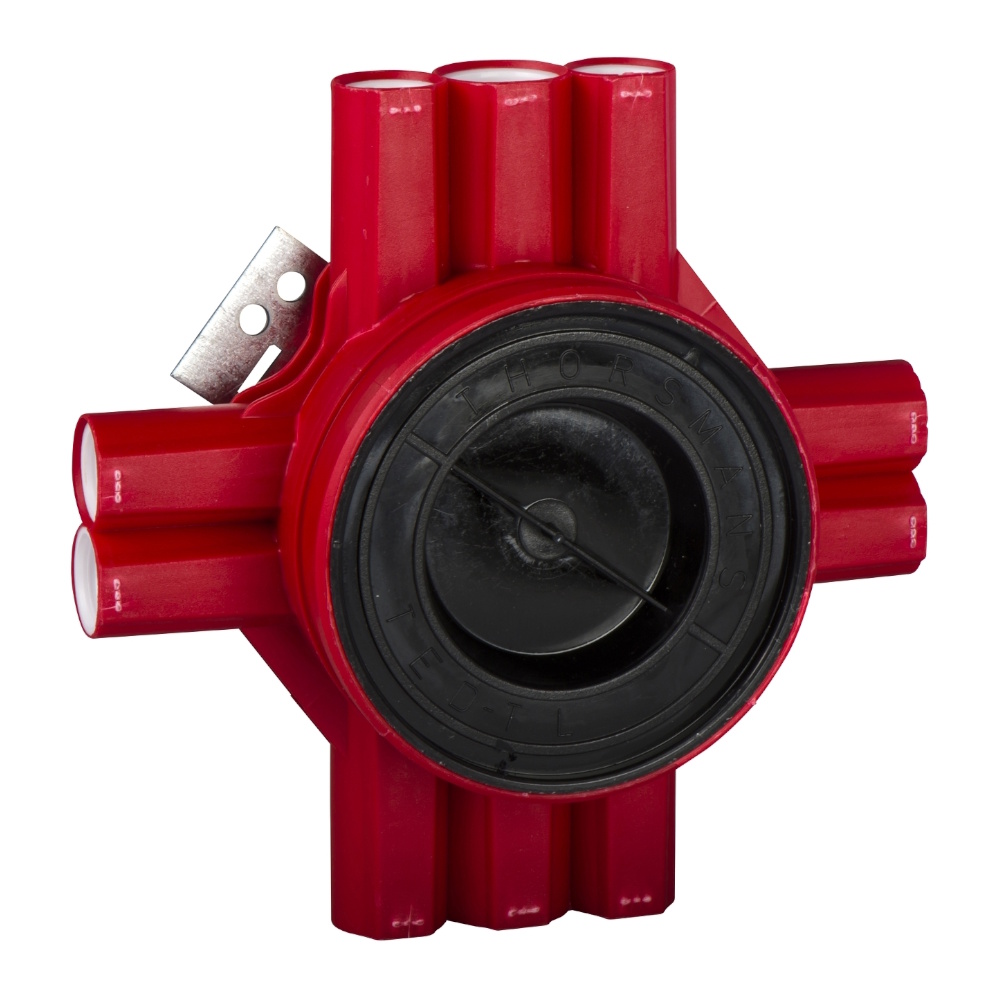

Ceiling Box Multifix TED Recessed IP20 Plastic Red Schneider Electric

Description

This Multifix TED is a double ceiling box with stubs located 26 mm from the front edge of the box is red in color. It is made of PEHD (polyethylene high density) making it resistant and durable. It has Snap-On connection terminals. The internal depth is 47 mm.

Technical Information

• Model: Single
• Shape: Round
• Construction type: Cable junction box
• Inner depth: 47 mm
• Connectable: Yes
• Sealable: No
• Circuit integrity: None
• Number of inlets: 10
• Mounting switching equipment: Screwing
• Cover attachment: Snapped on
• For number of electric fittings: 1
• Luminaire hook mounting: No
• Max. conductor cross section: 2.5 mm²
• With screening: No
• With nail lugs: No
• With screws: No
• Air tight: No
• Degree of protection (IP): IP20
• For tube diameter: 16/20 mm
• Inlet from the rear: No
• Pipe locking: Yes
• Special application: None
• Clamp position fixed: No
• Number of poles of the clamp: 0
• Nozzle: None
• Provided with revolving ring: No
• Housing feed-through by seal membrane: Yes
• Housing feed-through by nozzle: Yes
• Housing feed-through by step membrane: No
• Pipe locking optional: No
• Number of included spouts: 10
• Cover model: Mounting cover
• Housing feed-through by break-out opening: No
• Transparent cover: No
• Degree of protection (NEMA): 1

Specifications

• Color: Red
• Material: Plastic
• Halogen free: Yes
• Surface protection: Untreated
• Length: 139 mm
• Diameter: 83 mm
• Width: 49 mm
• Depth: 49 mm
